IMO, MARPOL & SOLAS Compliance
Raised-pictogram IMO-style safety plaques, plus permanent PETG-CF placards for MARPOL and SOLAS compliance. All placard sizes meet or exceed federal minimum size requirements. Nothing to peel, nothing to fade — built for the marine environment.
Regulatory sizing
MARPOL garbage placards are required to be at least 8”×5” (33 CFR 151.59). Oil pollution prevention placards must be at least 5”×8” (33 CFR 155.450). All HarborSPEC compliance placards meet or exceed these minimums. Required on all manned commercial vessels 26’ and greater operating in U.S. navigable waters.
MARPOL garbage placards are required to be at least 8”×5” (33 CFR 151.59). Oil pollution prevention placards must be at least 5”×8” (33 CFR 155.450). All HarborSPEC compliance placards meet or exceed these minimums. Required on all manned commercial vessels 26’ and greater operating in U.S. navigable waters.
⚓ IMO-Style Plaques
IMO color-coded — raised pictograms, 150×150mm, permanent PETG-CF. The wider IMO symbol set.
Green / White
Red / White
IMO Color-Coded
IMO-Style Plaques
Raised pictograms · 150×150mm · Flat back · PETG-CF

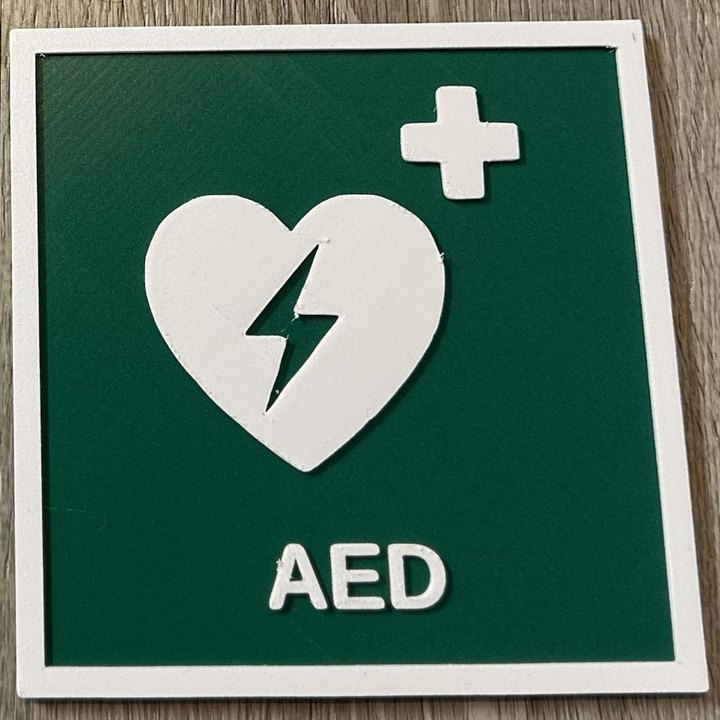

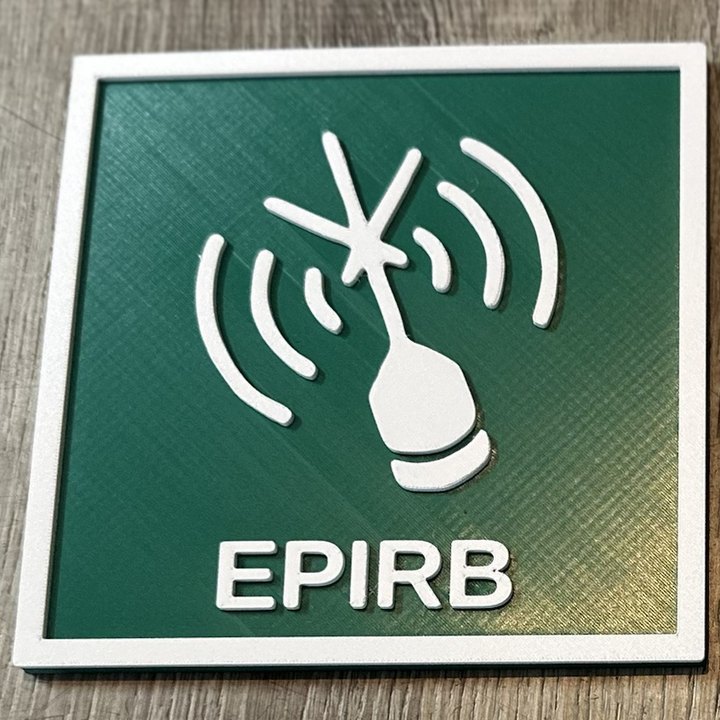

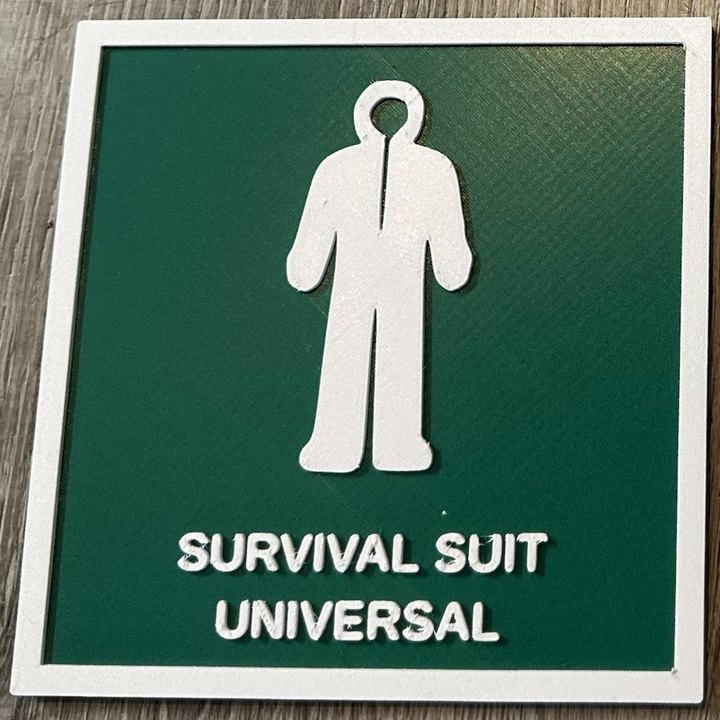

EPIRB, liferaft, survival suit, AED, fire extinguisher, life jacket, muster station, emergency exit, first aid, lifeboat — and more from the IMO symbol set. Optional raised label. Nothing to peel, nothing to fade.
EPIRB, liferaft, survival suit, AED, fire extinguisher, life jacket, muster station, emergency exit, first aid, lifeboat — and more from the IMO symbol set. Optional raised label. Nothing to peel, nothing to fade.
$35 EACH
Choose Your Plaque⚓ MARPOL Placards
Federally required pollution prevention placards — exact regulatory text per 33 CFR 151 & 155.
Bundle
All 4 Placards
Save $12
MARPOL Complete Bundle
Everything required — one order, one price.
Includes all four MARPOL placards:
• Garbage Discharge Placard (210×140mm)
• Oil Pollution Prevention Placard (140×210mm)
• No Discharge of Oily Bilge Water Label
• No Discharge of Sewage Label
All Black/Brass PETG-CF · Meets 33 CFR 151 & 155 requirements · Buy individually for $112 — save $12 with the bundle.
• Garbage Discharge Placard (210×140mm)
• Oil Pollution Prevention Placard (140×210mm)
• No Discharge of Oily Bilge Water Label
• No Discharge of Sewage Label
All Black/Brass PETG-CF · Meets 33 CFR 151 & 155 requirements · Buy individually for $112 — save $12 with the bundle.
$100
Black / Brass
33 CFR 151.59
Garbage Discharge Placard
“The discharge of all garbage is prohibited into the navigable waters of the United States…”
Fixed regulatory text · 210×140mm · PETG-CF
Exceeds 203×127mm federal minimum. Posted in galley, trash storage, and common areas. Required on vessels 12m and over.
Exceeds 203×127mm federal minimum. Posted in galley, trash storage, and common areas. Required on vessels 12m and over.
$38
Black / Brass
33 CFR 155.450
Oil Pollution Prevention Placard
“The Federal Water Pollution Control Act prohibits the discharge of oil or oily waste…”
Fixed regulatory text · 140×210mm portrait · PETG-CF
Exceeds 127×203mm federal minimum. Posted in machinery space or at bilge pump control station. Required on vessels 26’ and over.
Exceeds 127×203mm federal minimum. Posted in machinery space or at bilge pump control station. Required on vessels 26’ and over.
$42
Black / Brass
MARPOL Annex I
No Discharge of Oily Bilge Water
“NO OILY BILGE WATER DISCHARGE”
Fixed text · 110×45mm · PETG-CF
Small label format. Posted at bilge pump or overboard discharge valve.
Small label format. Posted at bilge pump or overboard discharge valve.
$14
Black / Brass
MARPOL Annex IV
No Discharge of Sewage
“NO DISCHARGE OF SEWAGE”
Fixed text · 150×60mm · PETG-CF
Posted at sewage discharge valves and overboard connections.
Posted at sewage discharge valves and overboard connections.
$18
🔥 SOLAS Placards
Safety of Life at Sea compliance — fixed text, permanent PETG-CF construction.
Red / White
SOLAS Ch. II-2
CO2 System Warning
“WARNING — CO2 SYSTEM — EVACUATE SPACE IMMEDIATELY BEFORE ACTIVATING”
Fixed text · 200×120mm · Red/White · PETG-CF
Posted at CO2 system activation points and protected spaces. High visibility red with white raised text.
Posted at CO2 system activation points and protected spaces. High visibility red with white raised text.
$35
Green / White
SOLAS Ch. II-2
Emergency Escape Route
Directional arrow — “EMERGENCY ESCAPE ROUTE”
Fixed text + arrow · 150×60mm · Green/White · PETG-CF
Posted along emergency escape routes. Arrow points direction of travel. Specify arrow direction (left or right) in order notes.
Posted along emergency escape routes. Arrow points direction of travel. Specify arrow direction (left or right) in order notes.
$22
Red / White
SOLAS
No Unauthorized Access
“NO UNAUTHORIZED ACCESS — AUTHORIZED PERSONNEL ONLY”
Fixed text · 150×60mm · Red/White · PETG-CF
Posted at machinery space entrances, engine room doors, and restricted areas.
Posted at machinery space entrances, engine room doors, and restricted areas.
$18
✎ Emergency Escape Route
The escape route label is available with arrow pointing left or right. Specify arrow direction in your order notes at checkout.
